Aluminum Repair

We have a wide range of aluminum repair products

Equipment Options

Aluminum Repair Stations

Controlled, Isolated Environments for Aluminum Repair Processes

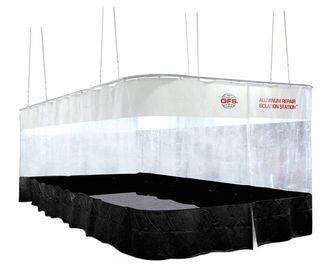

Aluminum Repair Isolation Station

 GFS’ most cost-effective environment for aluminum repair, the Aluminum Repair Isolation Station features heavy-duty, non-combustible curtain walls to prevent contamination during the aluminum repair process.

Aluminum Repair Station

 In addition to heavy-duty, non-combustible curtain walls, the Aluminum Repair Station features a ceiling with integrated four-tube light fixtures for proper illumination and added protection against contamination.

Aluminum Repair Station Plus

 Featuring heavy-duty curtain walls, four-tube light fixtures and semi-downdraft airflow with an overhead filtered plenum, GFS’ Aluminum Repair Station Plus is a high-performance environment for aluminum repair. It can also be used for spot painting and other repairs for maximum productivity and flexibility.

Chief Aluminum Welding Equipment

MULTIMIG 511 – Aluminum Welder

A push-pull torch designed specifically to optimize aluminum welding. Built-in cart for easy welder handling, Includes storage for gas cylinder. Synergic pulsed welder with full set of welding programs for easy use.

MULTIMIG 522 – Aluminum Welder

Welding and brazing of aluminum alloys, galvanized sheet metal, stainless, and high-strength steel

Double Pulse feature – mechanically and electrically controls the welding parameters to achieve a TIG-looking weld bead. Synergic pulsed welder with full set of welding programs for easy use.

MULTIMIG 721 – Aluminum Welder

Double Pulse feature – mechanically and electrically controls the welding parameters to make aluminum welding easier and for increased confidence.

MULTISPOT M30 Pro – Aluminum Stud Welder

 Aluminum has different properties than steel, requiring special tools, equipment, and processes in its repair. The new Chief M30 Pro Alu Stud Welder incorporates technology that allows for a strong spot weld with minimal heat penetration, so little or no heat is transferred through the material to areas where it is not needed.

MULTISPOT M25AL – Aluminum Welder

High output power stud welder for aluminum, mild steel, galvanized steel, stainless steel and brass surfaces.

MULTISPOT M35 – Drawn ARC Welder

Chief’s new M-35 is a drawn arc welding product developed specially for automotive dent repair. This innovative gun is equipped with a high precision, digitally-controlled linear motor which provides a better connection.

MULTIMIG 525 – Aluminum Welder

Double Pulse feature – mechanically and electrically controls the welding parameters to achieve a TIG-looking weld bead making aluminum welding easier. Three standard MIG torches (one brazing, one

aluminum, one steel) are mounted simultaneously with three different reels and wire.

Chief Riveting Tools

PNP90 Riveting Tool

Specifically developed for riveting sheet metal in the autobody repair field, the rivet gun is a pneumatic-hydraulic system for riveting and pressing out self-piercing rivets. The equipment’s universal technology enables adaption of various attachments for different application. Easy to use, lightweight and highly efficient – this riveting tool allows your technicians to complete repairs in record time

Heavy-Duty Riveting Tool

Chief’s rivet gun is a pneumatic-hydraulic system for riveting and pressing out self-piercing rivets. Universal technology enables adaption of various attachments for different applications. Easy to use and highly efficient – this riveting tool allows technicians to complete repairs in record time.The HD rivet gun is the strongest mobile hydraulic tool for bodywork repair with 10 tons of compressive force and 8 tons of tension force.


Multitool Workstations

Multitool Workstation with M35

With all the required tools for aluminum or steel auto body repairs. Specially designed for the repair of aluminum and steel sheet metal panels. Easy to handle, mobile workstation cabinet for dedicated dent repair, tool storage, and workbench.

Includes M35 Drawn ARC Welder (115V) with automatic gun with 2 ground electrodes, aluminium keys consumables box / 1.5 mm, and a lifting rod.

Heavy-Duty Riveting Tool

 With all the required tools for aluminum or steel auto body repairs. Specially designed for the repair of aluminum and steel sheet metal panels. Easy to handle, mobile workstation cabinet for dedicated dent repair, tool storage, and workbench.

Includes MultiSpot M30Pro (EL900026) 115V aluminum capacitor discharge stud welder, complete with grounded stud gun and 2-clamp grounding cables.


Dust Extraction

Dust Extractor 63L

The CHD3002 works to filter the air in the areas where you make money in, the body repair space. The detachable water tank is easily removable and includes a brass ball valve to empty recovered materials. This unit features a coalescing filter element assembly that has a replacement life of around a year.  With optional features like automatic on/off you can customize this dust extractor to meet all your dust removal needs.

Dust Extractor 85L

 Chief’s Dust Extractor System is a CSA certified vacuum with and immersion separator. The CHD3001 has a wet immersion separator with no need for filter replacement.  A series of screens and baffles neutralize and render aluminum dust inert.  With the air free of dust, technicians can breathe easy and continue to work in an environment that promotes clean air. Chief’s dust extractor collects and contains particles that are released when aluminum vehicle body panels are sanded.
